Top Bottom Paper Slitter Blade inlay TC ring for Rewinder
Product Introduction
As for the selection of cutting tool materials, we can make recommendation according to customers' cutting materials, so as to ensure that customers can use the appropriate knives during production. The common specifications of blades may be not suitable for your machines, and if needed, please send us the samples or drawings. “PASSION” will manufacture strictly in accordance with the design precision.
Material selection
Circular rewinder top blade: 9CrSi, SKD-11, D2, M2, SKH-51, Tungsten carbide etc.
Rewinder bottom blade: 9CrSi, SKD-11, inlay carbide, etc.
Specifications
| Product Name | Bottom Slitter Knife | Surface | Polishing |
| Material | 9CrSi, SKD-11, D2, M2, SKH-51, TC | MOQ | 2 |
| Type | Slitting Blades | Logo | Accept Customized Logo |
| Hardness | 70-73HRC | Customized Support | OEM, ODM |
Specification

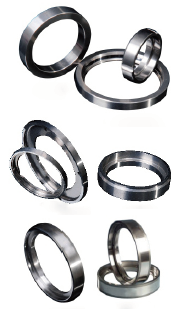

| Dimension(mm) | OD(mm) | ID(mm) | Thickness(mm) | Refer Picture |
| Φ250*Φ200*38 | Φ250 | Φ200 | 38 |
|
| Φ250*Φ200*20 | Φ250 | Φ200 | 20 | |
| Φ250*Φ188*25 | Φ250 | Φ188 | 25 | |
| Φ250*Φ188*20 | Φ250 | Φ188 | 20 | |
| Φ250*Φ188*15 | Φ250 | Φ188 | 15 | |
| Φ250*Φ180*25 | Φ250 | Φ180 | 25 | |
| Φ250*Φ180*15 | Φ250 | Φ180 | 15 | |
| Φ250*Φ140*20 | Φ250 | Φ140 | 20 | |
| Φ250*Φ180*15 | Φ250 | Φ180 | 15 | |
| Φ250*Φ138*15 | Φ250 | Φ138 | 15 | |
| Φ240*Φ188*30 | Φ240 | Φ188 | 30 | |
| Φ210*Φ188*50 | Φ210 | Φ188 | 50 | |
| Φ210*Φ180*25 | Φ210 | Φ180 | 25 | |
| Φ202*Φ155*38 | Φ202 | Φ155 | 38 | |
| Φ200*Φ150*25 | Φ200 | Φ150 | 25 | |
| Φ200*Φ150*10 | Φ200 | Φ150 | 10 | |
| Φ200*Φ138*22 | Φ200 | Φ138 | 22 | |
| Φ200*Φ138*15 | Φ200 | Φ138 | 15 | |
| Φ200*Φ65*25 | Φ200 | Φ65 | 25 | |
| Φ190*Φ135*15 | Φ190 | Φ135 | 15 | |
| Φ180*Φ138*31 | Φ180 | Φ138 | 31 | |
| Φ180*Φ120*30 | Φ180 | Φ120 | 30 | |
| Φ150*Φ110*25.4 | Φ150 | Φ110 | 25.4 | |
| Φ150*Φ100*20 | Φ150 | Φ100 | 20 | |
| Φ105*Φ60*35 | Φ105 | Φ60 | 35 | |
| Φ80*Φ55*10 | Φ80 | Φ55 | 10 | |
| Knife edge type: Single or double side available. Materials: Tungsten Carbide or customization Materials. Application: For cutting paper cutting, film, foam, disposable paper, baby diaper, adult diaper, paper tube and so on. |
||||
| NOTE: Customization available per customer drawing or actual sample | ||||
Features
1、Adopting advanced heat treatment and processing technics, the slitter rewinder blades are wear-resistant, and the blade mirror surface is without burrs.
2、Inlay carbide rewinder bottom blades use silver solder pieces to weld alloy part on the tool steel, solid and seamless.
About Factory
Chengdu Passion is a comprehensive enterprise specialized in designing, manufacturing and selling all kinds of industrial and mechanical blades, knives and cutting tools for over twenty years. The factory is located in panda’s hometown Chengdu City, Sichuan Province.
The factory occupies almost three thousand square meters and includes over one hundred and fifty stuff. “PASSION” has experienced engineers, quality department and completed production system, which includes press, heat treatment, milling, grinding and polishing workshops.
“Passion” supplies all kinds of circular knives, disk blades, knives of steel inlaid carbide rings, re-winder bottom slitter, long knives welded tungsten carbide, tungsten carbide inserts, straight saw blades, circular saw knives, wood carving blades and branded small sharp blades. Meanwhile, the customized product is available.
