ECOCAM E70 tungsten carbide wedge blade for CNC tangential cutting modules
Product introduction
Oscillating tangential cutting compared to cutting with a drag knife
With the oscillating tangential module, the cutting head has a more sophisticated design than with the module for drag knives.This is because, in tangential cutting, a separate stroke motor guides the blade to any acute angle.In other words, the motor raises the blade, turns it and lowers it again.By changing the tangential knife blade in the respective cutting direction, exact cuts are possible.Consequently, even fine lines, corners, edges and contours can be cut accurately.
Besides, the versatile use of a tangential knife is advantageous, not only concerning the cutting geometry but also the material to be cut.This is because a tangential cutting module also works precisely and quickly when machining more robust and stable materials.
Product application
The application possibilities for our tangential knife blades are extensive. You can cut letters from adhesive foil for lettering and logos. On the other hand, you can also use them for lettering advertising signs and vehicles. You can also use the cutting tools with our cutting modules on a CNC machine to produce seals made of cork or rubber.The different blade types are, among other things, excellently suited for the following materials:
*foil/flock foil
*felt
*rubber/sponge rubber
*cork
*leather
*cardboard/corrugated board
*PU foam boards
*foam
introduction of the factory
Chengdu PASSION precision tools Co., Ltd committed to providing customers with the best solutions according to their different requirements. We can design blades according to customer's purpose, including cutting edge, drawings and other details. And try our best to provide customers with the best solution. We can also customize blades for customers according to customer drawings and details of blades, and follow up with customers to select the most suitable materials to manufacture products for customers.
Parameter characteristics of the product
| Product Nume | ECOCAM Blade |
| Cutting edges | 1 |
| Length of cutting edge | 8 mm |
| Material | Tungsten carbide |
| Total length | 25 mm |
| Type | 6mm straight shank with Weldon surface |
Specification
| Code | Description | Recommend use | Photo |

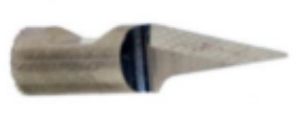

| E12 | sidesCutting edges: 2 Length of cutting edge: 12 mm Total length: 25 mm Type: 6mm straight shank with Weldon surface |
cardboard gasket material foam rubber cork one-sided blade for fine lines |
 |

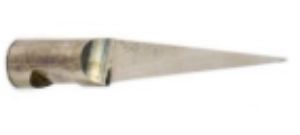

| E18 | Cutting edges: 1 Length of cutting edge: 13,5 mm Total length: 25 mm Type: 6mm straight shank with Weldon surface |
cardboard gasket material foam rubber cork one-sided blade for fine lines |
 |

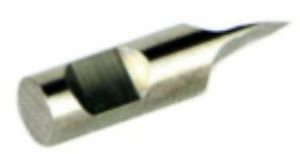

| E25 | Cutting edges: 1 Length of cutting edge: 25 mm Total length: 39 mm Type: 6mm straight shank with Weldon surface |
cardboard gasket material foam rubber cork one-sided blade for fine lines |
 |

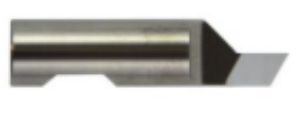

| E28 | Cutting edges: 1 Length of cutting edge: 30 mm Total length: 45 mm Type: 6mm straight shank with Weldon surface |
cardboard gasket material foam rubber cork one-sided blade for fine lines |
 |

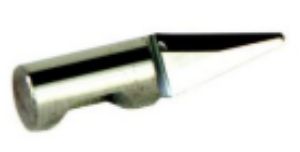

| E30 | Cutting edges: 1 Length of cutting edge: 2,5 mm Total length: 25 mm Type: 6mm straight shank with Weldon surface |
for TCM module wedge blade for normal foils and writings |
 |

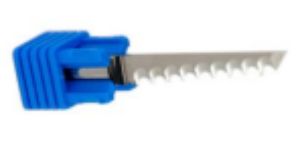

| E85 | Cutting edges: 1 Length of cutting edge: 50 mm Total length: 65 mm Type: 6mm straight shank with Weldon surface |
for EOT module for soft polyurethane foam panels |
 |
| E87 | Cutting edges: 1 Length of cutting edge: 70 mm Total length: 83 mm Type: 6mm straight shank with Weldon surface |
for EOT module for soft polyurethane foam panels |
 |
| E92 | Cutting edges: 1 Length of cutting edge: 120 mm Total length: 133 mm Type: 6mm straight shank with Weldon surface |
for EOT module for soft polyurethane foam panels |
 |
| W30 | Cutting edges: 1 Length of cutting edge: 38mm Total length: 60 mm Type: 6mm straight shank with Weldon surface |
for EOT module for foam insulation materials corrugated cardboard |
 |
| W60 | Cutting edges: 1 Length of cutting edge: 50mm Total length: 74mm Type: 6mm straight shank with Weldon surface |
for EOT module for foam insulation materials corrugated cardboard |
 |
| E50 | Cutting edges: 2 Length of cutting edge: 3,5 mm Total length: 25 mm Type: 6mm straight shank with Weldon surface |
TCM module wedge blade for flock textile foils felt, cardboard |
 |

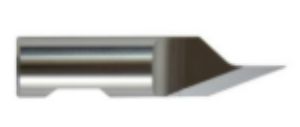

| E70 | Cutting edges: 1 Length of cutting edge: 8 mm Total length: 25 mm Type: 6mm straight shank with Weldon surface |
TCM module wedge blade for flock textile foils felt, cardboard rubber |
 |
